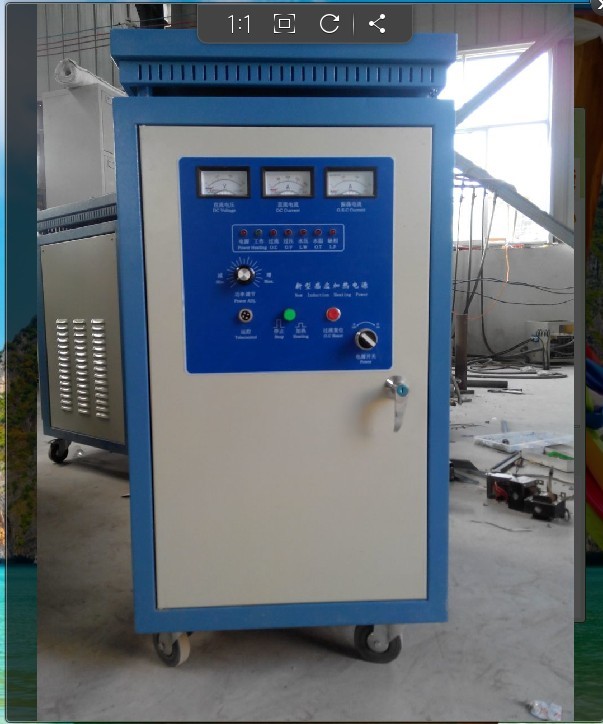

High frequency quenching machine 50Kw
Henan Chao Feng electrical 50KW high-frequency machine advantages
Power saving: than the electron tube power 30%, than frequency power SCR 20%.
2, stable performance, full protection, no worries.
3, heating speed, no oxidation layer, small deformation.
4, small volume, light weight, convenient installation.
The 5, sensor isolation by transformer, safety.
6, environmental protection: no pollution, noise and dust.
7, strong adaptability to various: workpiece heating.
8, the temperature and the heating time can be controlled accurately, high machining quality.
Main application: this type is especially suitable for the heating field of forging, high strength bolt, nut diathermy forging. General parts diathermy forging and all kinds of automobile, motorcycle parts need diathermy forging, also can be used forsmall parts of the quenching, annealing.
Model / configuration 50
The working power three-phase 380V/50HZ
Working voltage 342V-430V
The maximum input current 75A bus
The maximum output current of 50KVA
The oscillation frequency of 15-35KHZ
The efficiency of 90%
Load sustained rate of 100%
The cooling water flow rate 20Lmin (0.1mp)
Cooling water pressure 0.1-0.3mp
Host weight 55kg
The weight of 35kg transformer
Machine dimension 590*450*780
Transformer size 420*335/450
The host color blue / white
Transformer color blue / white
Special applications standard hot pier, gear quenching
The water temperature at 50 ℃ protection
