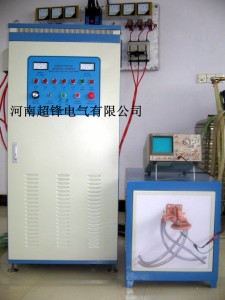

120kw high frequency ultrasonic frequency diathermic furnace
The characteristics and parameters of 120KW high frequency furnace:
1, power: than the electron tube power 30%, than frequencypower SCR 20%.
2, stable performance, full protection, no worries.
3, heating speed, no oxidation layer, small deformation.
4, small volume, light weight, convenient installation.
The 5, sensor isolation by transformer, safety.
6, environmental protection: no pollution, noise and dust.
7, strong adaptability to various: workpiece heating.
8, the temperature and the heating time can be controlled accurately, high machining quality.
Main application: heat treatment quenching machine guide,automobile, motorcycle, wrenches and other parts. Bolt, nutlarger diameter of hot upsetting, crankshaft, camshaftsprocket gear quenching, quenching, the metal belt hot plating, heat treatment of steel wire, nonferrous metalsmelting.
Model / configuration 120
The working power three-phase 380V/50HZ
Working voltage 342V-430V
The maximum input current 165A bus
The maximum output current of 120KVA
The oscillation frequency of 15-35KHZ
The efficiency of 100%
Load sustained rate of 100%
The cooling water flow rate 28Lmin (0.1MPa)
Cooling water pressure 0.1-0.3mp
Host weight 85kg
The weight of 90kg transformer
Machine dimension 650*520*1100
Transformer size 500*800*580
The host color blue / white
Transformer color blue / white
Special application field of auto parts, cam shaft,metallic diathermy
The water temperature at 50 ℃ protection
