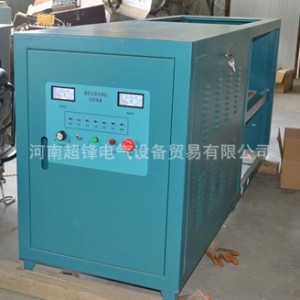

Cf-200KW intermediate frequency induction furnace
intermediate frequency CF-200Kw
The working power of three-phase three wire system380V/50HZ
Working voltage 380V-430V
The maximum input current 200KVA
The maximum output current of 30A-330A
The oscillation frequency of 2-10KHZ
The efficiency of 100%
Load sustained rate of 100%
The cooling water flow rate /h 3M ³
Cooling water pressure 0.15-0.3mpa
Machine dimension 800*520*1800
The host color blue / white
Special application bar diathermy forging gearforging
The water temperature at 50 ℃ protection
chao feng medium frequency induction heating equipment of intermediate frequency furnace and wide use advantages
chao feng medium frequency induction heating equipment is widely used to highlight the advantages, if power 200KW-500KW, our type variety,can choose to have the opportunity to, can satisfy the technical requirement of heat treatment process of many large workpiece, its use is quite extensive,advantage is prominent, the specific use andadvantages about it, if you have large workpieceneed to heat treatment, then we choose super frontmedium frequency induction heating equipment,heating furnace model IGBT style, representing theenergy efficient.
Use super front medium frequency induction heatingequipment widely, so it is widely used in where?
1 bar diameter 70mm-150mm this range diathermy orlocal heating;
2 large diameter 600mm integrated gear surface quenching;
3 the larger diameter sprocket 900 surfacequenching;
4 large cross-sectional area of the guide railsectional area in the 500-700 can be completed bymid frequency;
5.60 square -70 square square diathermy or local heating;
