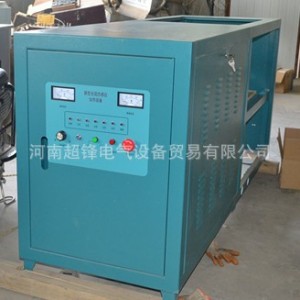

CF-230KW intermediate frequency induction furnace
Henan Chao Feng medium frequency induction heating furnace characteristics and parameters:
The use of IGBT devices, components of global procurement,using a combination of high efficiency resonancetechnology, using low inductance circuit arrangement, the use of large-scale digital circuits, using comprehensiveprotection technology is more mature,
Three advantages: 1, greatly saving heating, not a steelpower consumption 320 degrees, than the thyristor medium frequency power 20%-30%
2 will not bring the net side pollution, power supplytransformer substation capacitor compensation without heating, no heat, no interference with other equipment work
3 to reduce the capacity of transformer
Model / CF-230KW configuration
The working power of three-phase three wire system380V/50HZ
Working voltage 380V-430V
The maximum input current 230KVA
The maximum output current of 40A-380A
The oscillation frequency of 8-15KHZ
The efficiency of 100%
Load sustained rate of 100%
The cooling water flow rate /h 4m ³
Cooling water pressure 0.15-0.3mpa
Machine dimension 1900*600*850
The host color blue / white
Special application bar diathermy forging gear forging
The water temperature at 50 ℃ protection
