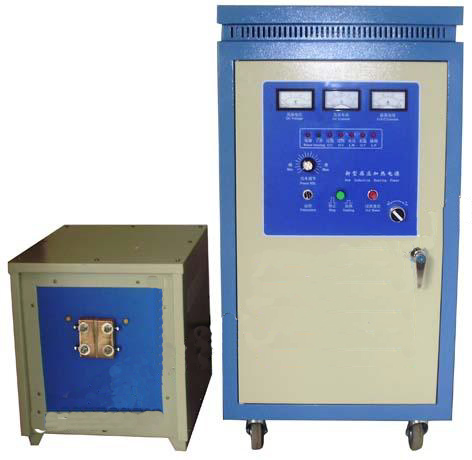

40KW superaudio series
Henan Chao Feng main technical advantages of electric 40KW:
1) using the German Siemens IGBT power module and inverter technology unique, adaptive resonance loop, enabling the equipment at the resonance point, devices, low loss, high work efficiency, the overall loss of small equipment.Equipment work for the series resonant mode, so no pressuresensor, thus eliminating the old equipment sensor with high pressure, electric injury staff exist hidden trouble. The device does not roar silent, no noise pollution, trulyenergy-saving, environmental protection
2) can adjust the heating process power, time, helps to improve the quality and repeatability of heating heating,simplify the worker has the advantages of simple operation.
3) simple installation, connecting the three phase 380V power supply, water, water can be completed, minutes.
4) compared with the tube type high frequency induction heating equipment, the same power level, IGBT high frequency to reduce the volume of 1/2, weight 2/3. Water saving 40%, saving 60%, covers an area of small, simple operation, can learn a few minutes.
5) heating efficiency is more than 90%, high frequency machine electricity saving 70% standby condition almost no electricity than vacuum tubes. And 24 hours of continuoususe.
6) induction coil can free disassembly, convenient replacement. Ultrafast heating rate greatly reduced the oxidation of the workpiece deformation.
7) replace gas and other dangerous gas heating no fireproduction, more in line with the national fire safetyregulations.
8) 100% load sustained rate, can be 24 hours of continuousmaximum heating power of the state.
9) control function with constant power and constantcurrent, the maximum efficient fast heating, optimize the heating process of metal workpiece.
10) can be equipped with a special output remote interface,in order to facilitate and external related equipmentcontrol, realize automation production line.
11) the whole control system is digital integratedprotection, fast action, the main component of IGBTinverter for permanent device, the failure rate is low,long life.
Model / configuration 40
The working power three-phase 380V/50HZ
Working voltage 342V-430V
The maximum input current 65A bus
The maximum output current of 40KVA
The oscillation frequency of 15-45KHZ
The efficiency of 90%
Load sustained rate of 100%
The cooling water flow rate 15Lmin (0.1mp)
Cooling water pressure 0.1-0.3mp
Host weight 45Kg
The weight of 29kg transformer
Machine dimension 460*360*630
Transformer size 320*320*310
The host color blue / white
Transformer color blue / white
Special application field of small workpiece heating, drill rod diathermy
The water temperature at 50 ℃ protection
