The gear heat treatment much equipment

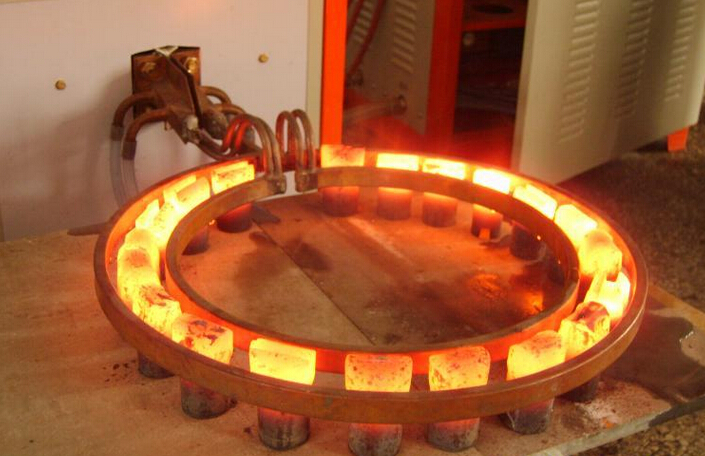

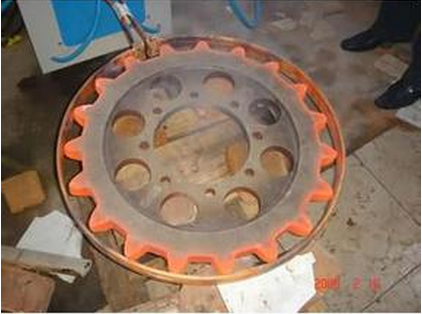

Gear, we are not unfamiliar, know that it is an important part of the automobile, motorcycle and so on, in the work process, to bear the enormous friction gear, therefore, the need forquenching. Gear quenching we usually adopt the high frequencyinduction heating furnace. This time, someone will ask different specifications of the gear are the use of high frequencyinduction heating furnace much heat treatment? This don’t worry,listen to a small slowly said to you.

The gear heat treatment, with much of the equipment to tell the truth, is affected by many factors in the selection, such as thediameter of the gear, tooth height, quenching speed. Choice ofcomprehensive individual customer gear specifications andequipment, we summarized some rules (see table below).

Equipment type selection of gear diameter

100mm 50kw/60kw

200mm 80kW

200-300mm 120kw

400-500mm 160kW

Well, look at the table, I think your work of the heat treatmentof high frequency induction heating furnace much, your heart has a general, however, small make up remind you not blindly to thetable as the standard, this table is only a reference, specificalso according to the actual the case may be, such astransformer capacity, you on quenching speed requirements etc..

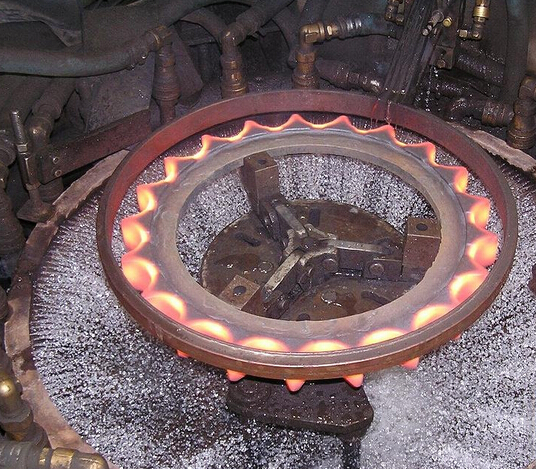

Gear quenching as half shaft, shaft and so on so simple, it is affected by many factors. Most of the gear can select the overall quenching treatment, but if your gear teeth height more than 30mm, you need to select a single gear quenching
